3 Axle Hydraulic Low Bed Trailers

Hydraulic Low Bed Trailer:

3 axle 50 ton low bed trailer is widely used in heavy machine transportation. The hydraulic low bed trailer has all the same versatility as a flatbed trailer but has a lowered deck to accommodate for a taller cargo height. This gives it an extra boost in the height that it can securely transport.

Sinotruk Zimbabwe low bed trailers for sale can have one step, where the deck drops and stays flat until the end of the trailer, or a double drop, where the deck drops below the axle height and steps back up over the axles at the end of the hydraulic low bed trailer.

3 Axle 50 Ton Hydraulic Low Bed Trailers for Sale in Zimbabwe Mutare

3 Axle 50 Ton Hydraulic Low Bed Trailers for Sale in Zimbabwe Mutare

3 Axle 50 Ton Hydraulic Low Bed Trailers for Sale in Zimbabwe Mutare

Specification of 3 axle low bed trailer:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW  Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

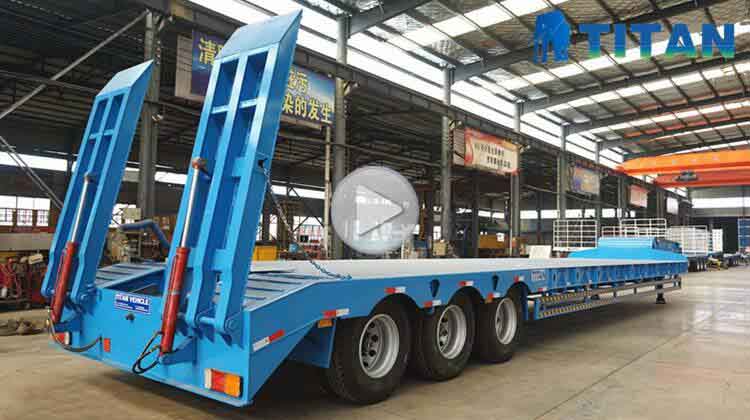

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

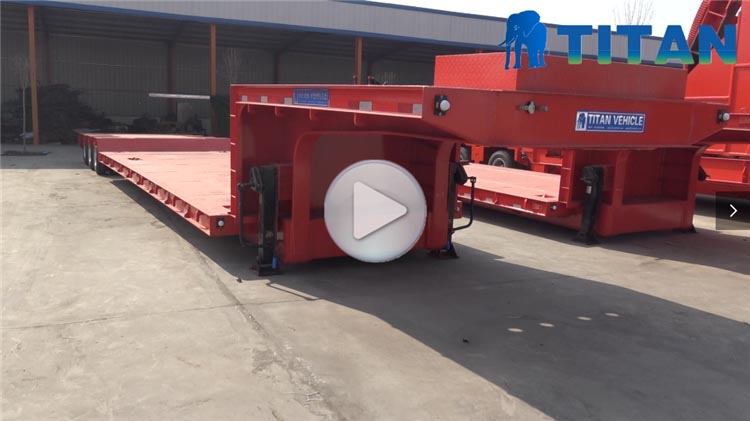

850mm Super Low Lowbed details display video

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
