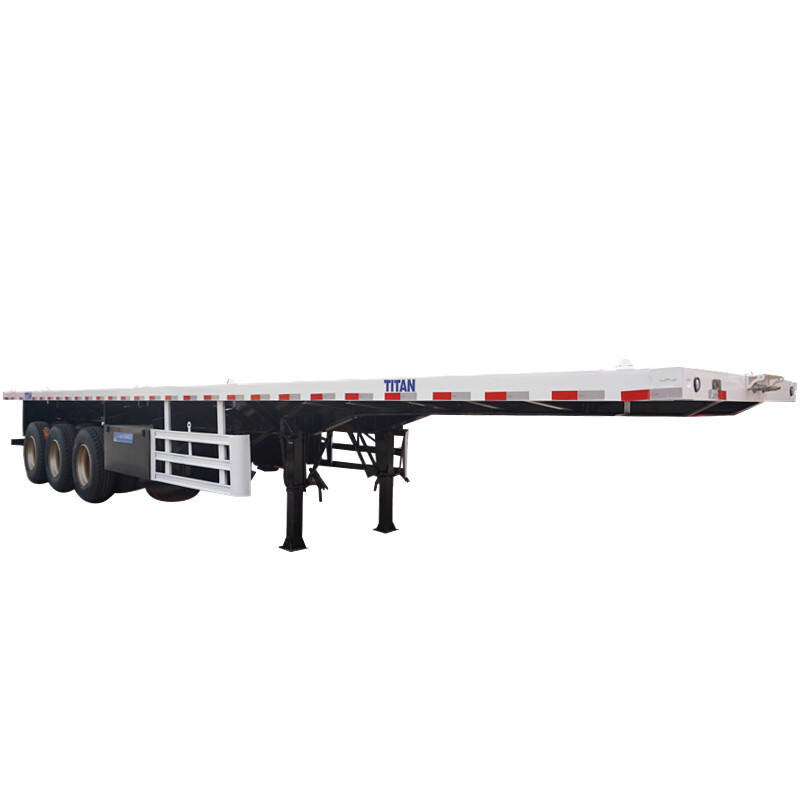

12m tri axle flatbed trailer for sale is the most popular model. Sinotruk Zimbabwe tri axle trailer is designed for transporting 40ft and 20ft containers and loose cargo.
Sinotruk Zimbabwe tri axle trailer price adopts high strength steel material to manufacture, it can make the flatbed trailer have a higher loading capacity and a longer service life.

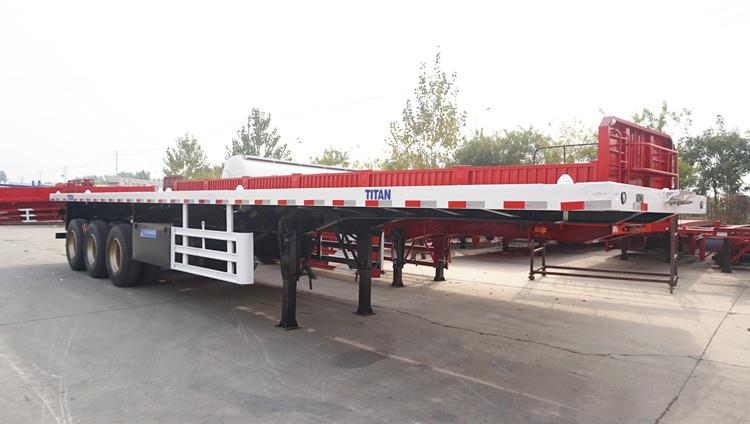

China 12m Tri Axle Flatbed Trailer for Sale Price in Zimbabwe Bulawayo

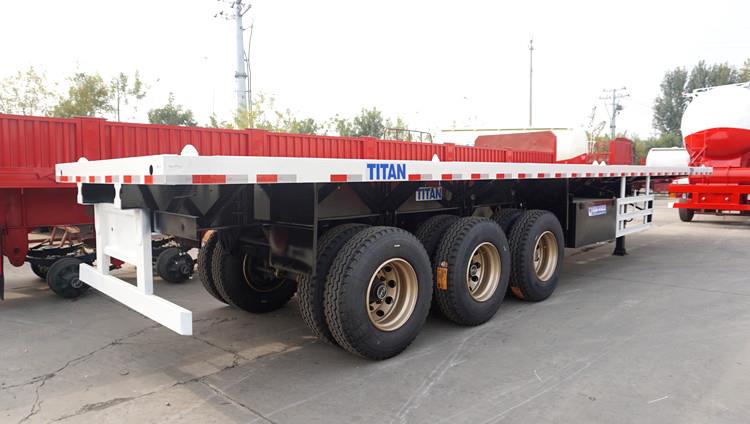

China 12m Tri Axle Flatbed Trailer for Sale Price in Ghana Tema
Model: Tri axle flatbed semi trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

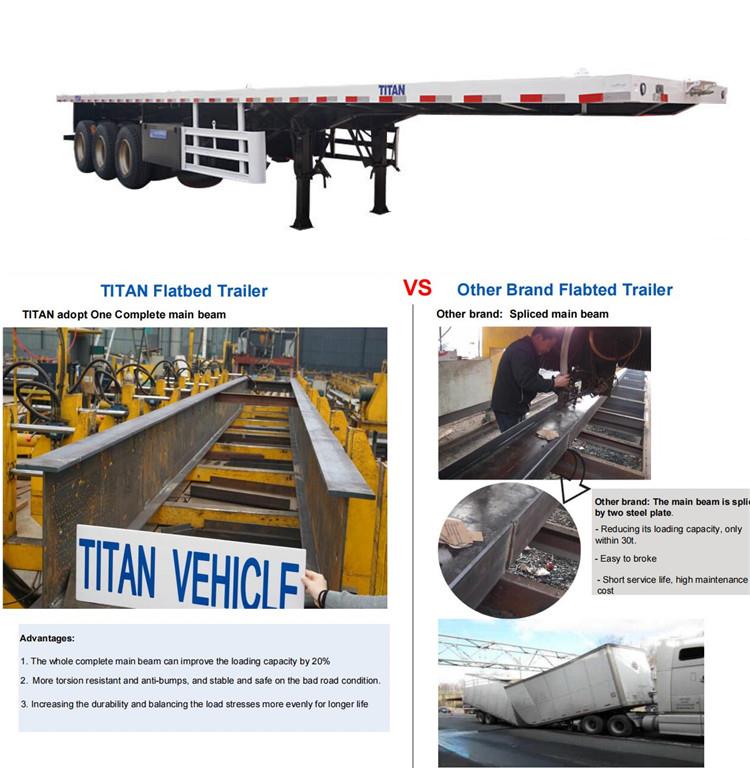

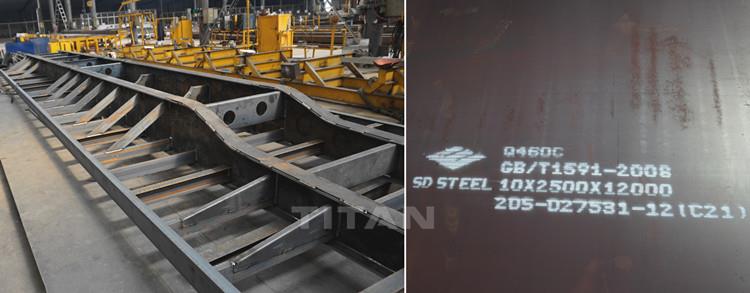

1. China tri axle flatbed trailer uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
2. To make sure the service life of the three axle flatbed trailer, all the spare parts we adopt are World Famous brand.
3. Also the flatbed semi trailer for sale floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
4. There are 9 cross beams, the distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
Through this video below, you can learn about different types of flatbed semi trailer,such as 2 axle,3 axle,4 axle, flatbed etc. As well as the process, testing, packaging and customer feedback, etc.
3 axle 40ft container flatbed trailer details display video
