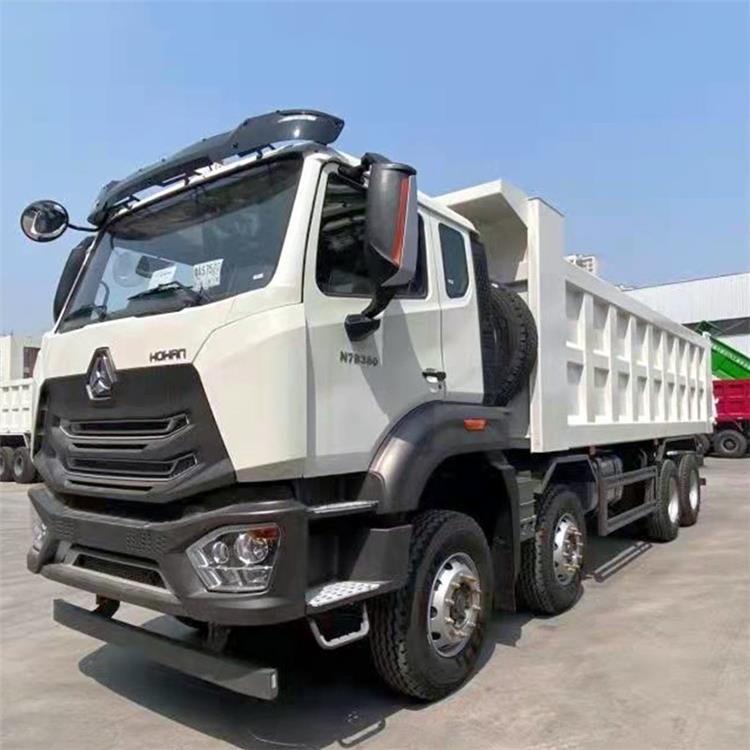

Howo N7 12 Wheeler Dump Truck

Description:

Unloading speed of howo n7 12 wheeler dump truck is very fast. 12 wheeler dump truck is your good assistant in the work. The 12 wheeler dump truck with 25-30 tons capacity can meet your needs.

We have two kinds of dump trucks, front tipping and middle tipping. There are three common driving, 4x2, 6x4, 8x4. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.

Howo N7 12 Wheeler Dump Truck Price for Sale in Zimbabwe Harare

Howo N7 12 Wheeler Dump Truck Price for Sale in Zimbabwe Harare

Specification:

MODEL: ZZ3317N3566B

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse  Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: ZF8118, hydraulic steering with power assistance  Ratio: 22.2-26.2:1

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20

CARGO BODY: 7300*2300*1500, bottom 8mm, side 6mm, Middle lift system

DRIVER CAB:

H77L, long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

DIMENSIONS(in mm):

Wheel base (mm): 1800+3500+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):11745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):16000

Dead weight (kg):15000

Gross vehicle weight (kg):31000

Front axle loading capacity (kg):2*9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)
