Sinotruk Zimbabwe removable gooseneck trailers can make the 2/3/4/6 axles lowboy trailers, with the capacity of 40/50/60/80/100/120 ton. We also can provide optional solutions for your transport requirements.
Sinotruk Zimbabwe removable gooseneck trailer for transport excavator and construction equipment, large machinery transportation.
4 axle 150 ton removable gooseneck trailer with dolly main beam is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. Our removable gooseneck lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.
150 Ton Removable Gooseneck Trailer with Dolly for Sale Zimbabwe Gweru
150 Ton Removable Gooseneck Trailer with Dolly for Sale Zimbabwe Gweru
Sinotruk Zimbabwe can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton. To meet your transport needs and your local regulations, we can customize different configuration removable detachable gooseneck lowboy for you.
Overall dimension：17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity: 150 ton
Axles：4 axles with 2 axles dolly
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
Valve: WABCO valve

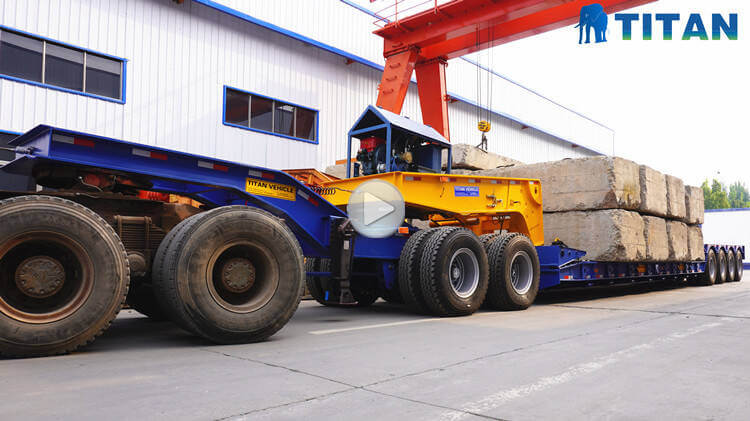

4 axle 150 ton detachable gooseneck lowboy trailer testing video display
Welcome to contact us !
