The gooseneck low bed trailer is used for trailers that carry oversize and overweight cargo. The basic form of a heavy trailer is a gooseneck low bed trailer. It generally has the following structure. The frame and the wheel axles and axles are mostly collinear, that is, there are two left and right axles on one axis, which is also called a two axis row. Common low bed gooseneck trailers have 2 to 7 axes.

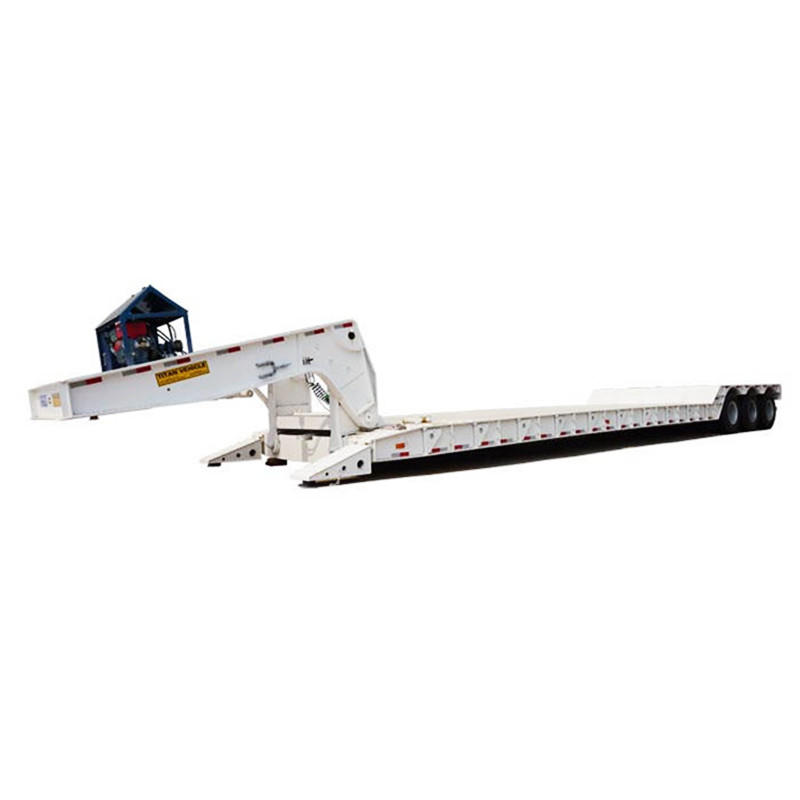

150 Ton Detachable Gooseneck Low Bed Trailer for Sale in Zimbabwe Harare
150 Ton Detachable Gooseneck Low Bed Trailer for Sale in Zimbabwe Harare
150 Ton Detachable Gooseneck Low Bed Trailer for Sale in Zimbabwe Harare

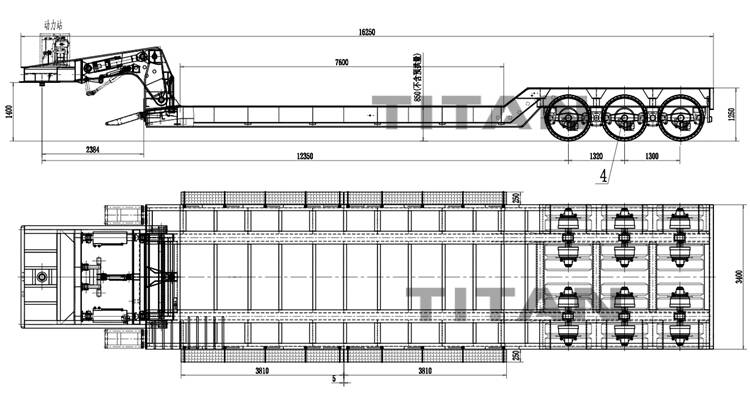

Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW Brand
Rim: 8.0-20 or 900*22.5
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

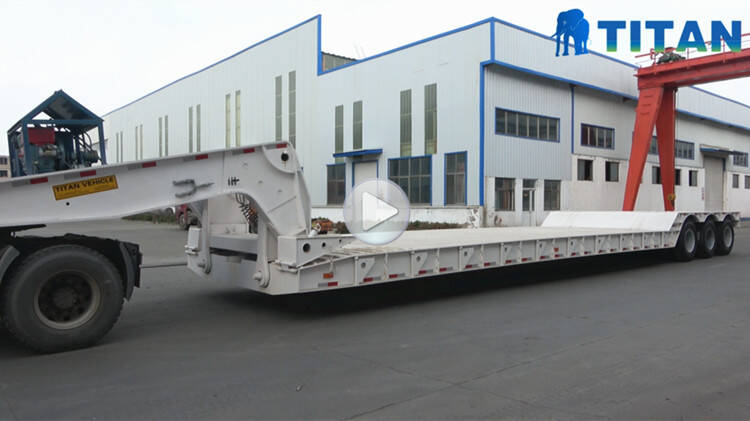

Through the video, you can know different types of low bed gooseneck trailer, gooseneck low bed trailer, detachable gooseneck low bed trailer, etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
Welcome to contact us !
