The lowboy gooseneck trailer relates to a hinged frame assembly ideally used for connecting a trailer of the low-bed type to a tractor. This type of lowboy trailer has been widely accepted in the transportation of heavy equipment such as power shovels, cranes and tractors.

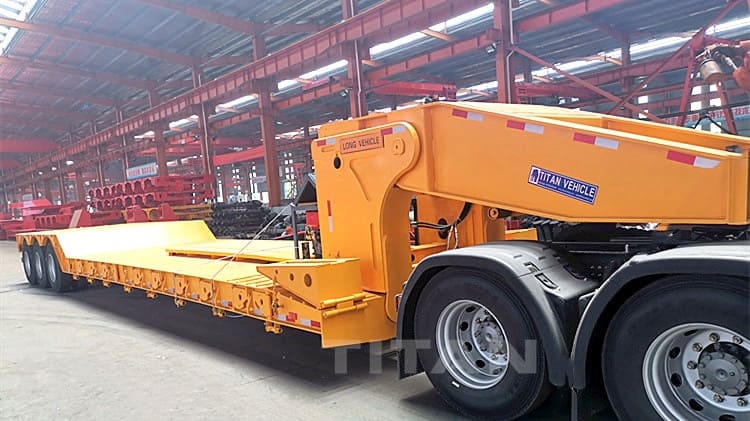

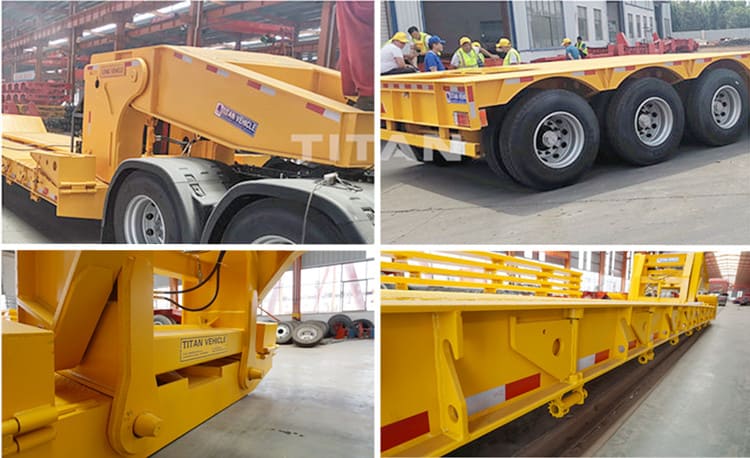

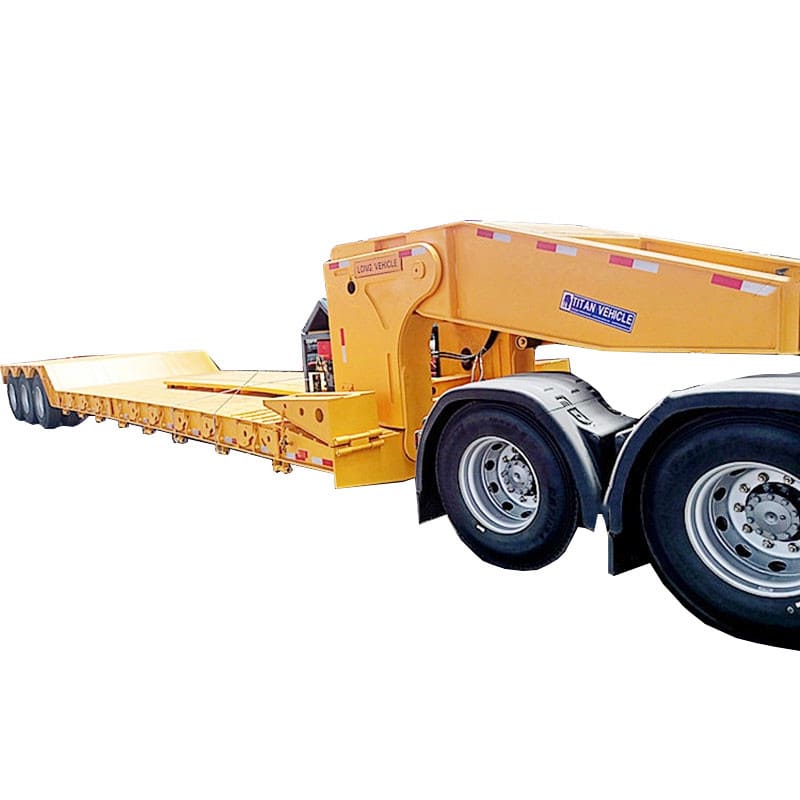

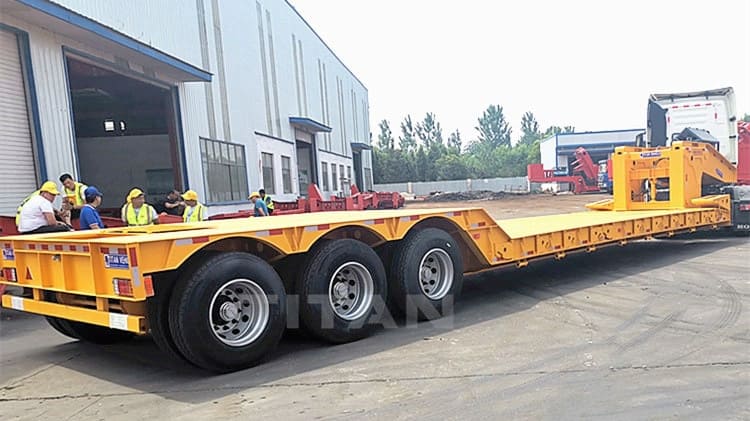

The 60T lowboy gooseneck trailer is a simplified low-bed trailer type for commercial usage. Despite being of great use in solving many sophisticated issues, the previous gooseneck trailer designs still had issues with the connecting assembly that was found to be complex. As a result, the lowboy gooseneck trailer for sale was designed to save space and make use of lighter units through a hinged frame assembly.
How Much is 60T Lowboy Gooseneck Trailer for Sale in Zimbabwe Kwekwe
How Much is 60T Lowboy Gooseneck Trailer for Sale in Zimbabwe Kwekwe
How Much is 60T Lowboy Gooseneck Trailer for Sale in Zimbabwe Kwekwe
Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

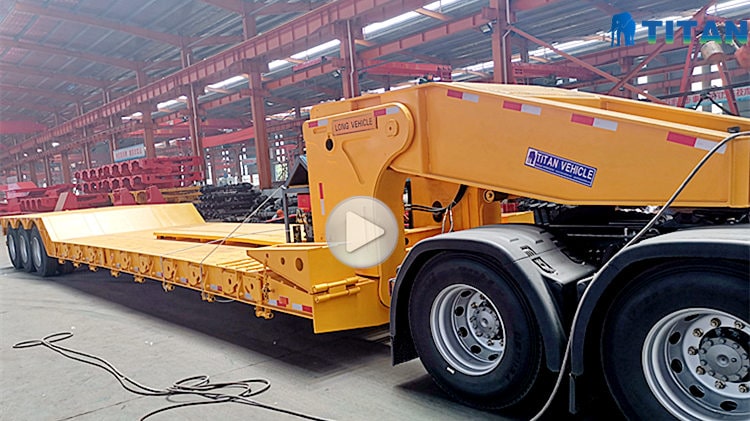

Through the video, you can know more details of 60T Lowboy Gooseneck Trailer , etc.
