100 Ton 4 Axle Front Loading Loader Trailer produced by Sinotruk Zimbabwe includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs, independent amber strobe kit.
The gooseneck on front loading low loader are hydraulically driven, with automatic lifting and automatic alignment functions. It can always be easily slid into the V-shaped alignment groove included in all our front loading lowbed trailer. Our hydraulically controlled fork does not need to manually block the neck during disassembly. The heavy-duty hydraulic cylinders are made in the United States, combining power and convenience. Our increased cylinder stroke means you can raise the trailer chassis from the ground to 16"-20", depending on the fifth wheel height.
4 Axle Front Loading Lowbed Loader Trailer for Sale in Zimbabwe Gweru
4 Axle Front Loading Lowbed Loader Trailer for Sale in Zimbabwe Gweru
Dimension: 16500mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW Brand
Rim: 8.0-20 or 900*22.5
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

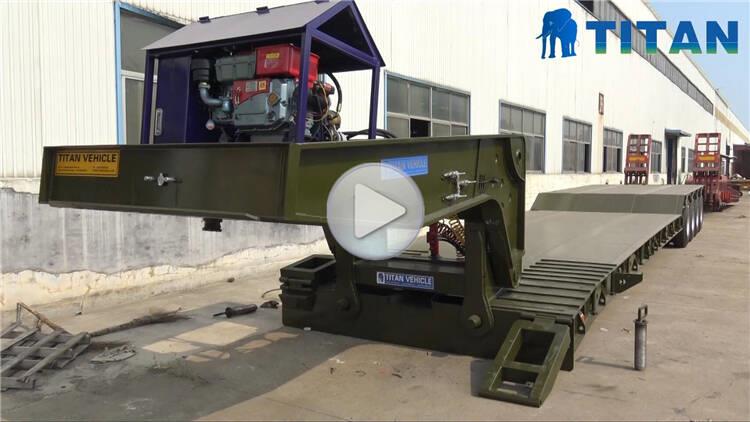

Through the video, you can know different types of front loading lowbed trailer, front loading low loader, etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
